Single Sided Laminators

We stock the excellent professional range of Matrix Laminating systems. These single single laminators are ideal for busy finishing house’s as they keep turnaround times to a minimum and ensure all jobs are kept in house. Complete with semi automatic feed and built in seperator system, the Matrix laminators mean prints come off ready for the guillotine. Contact us to find out which laminating machine is best for your company.

Showing all 13 results

  • Tauler Printlam CTI/CTIS B1 Laminator

    Tauler Printlam CTI/CTIS B1 Laminator

    Sale! £43,495.00 £31,076.00 ex Vat | £37,291.20 inc.VAT

    Make an enquiry

    The Tauler Printlam CTI/CTIS B1 laminator range, available in 750mm or 1050mm working width and offers the the ability to do the largest formats in the Tauler range. The Printlam CTI is fully automatic including an automatic sheet feed via pneumatic feeder head.  This heavy duty laminator has been constructed to be durable and hard wearing, using high quality steel and top electrical components.

    This machine is available in 2 versions.  The CTI 75 (750mm) and the CTI 105 (1050mm).  Also available in the range is the CTIS model which is complete with a deep pile delivery, adding the option of stacking on to pallets.

    Key features

    • Fully automatic.  Provides the best production speeds compared to its direct rivals
    • High speed.  Mechanical speeds of up to 30m per minute mean the CTI is capable of up to4000 sheets per hour
    • Pneumatic pressure roller system.
    • Automatic sheet registration and overlap system
    • Easy to set up and operate with the user friendly touch screen

    Technical spec for CTI 105

    • Maximum format – 1050mm x 1050mm
    • Minimum format – 250mm x 200mm
    • Paper Weight – 130gsm up to 450gsm
    • Speed – 30m per minute
    • Pressure – Pneumatic
    • 3 phase

  • Tauler Printlam B2 Laminator

    Tauler Printlam B2 Laminator

    Sale! £34,750.00 £24,842.00 ex Vat | £29,810.40 inc.VAT

    Make an enquiry

    Introducing the Tauler Printlam B2 professional laminator, a fully automatic machine for high volume and long run work.  With the automatic feed and stack height of up to 530mm it is well suited for 1 operator to load up long runs.  Pneumatic pressure roller system ensures quality throughout the lamination process, offering the best results of any similar machine on the market.  Ideal for digital and offset printing.

    Key features

    • Autonmatic deep pile feeder
    • Pneumatic pressure roller system
    • Sealed, oil filled cylinder for even and constant heat distribution
    • Automatic sheet registration and overlap system
    • Roller scissors cutting system to stop sheet having to skew on exit
    • Decurling system
    • Variable speed – up to 30m per minute

    Technical Spec

    • Maximum format – 520mm x 750mm
    • Minimum format – 200mm x 290mm
    • Stack height – 530mm
    • Paper weight – 130gsm up to 450gsm
    • Speed – up to 30m per minute
    • Pressure – pneumatic
    • 3 phase

  • Tauler Printlam SMARTMATIC Laminator

    Tauler Printlam SMARTMATIC Laminator

    Sale! £28,495.00 £20,469.00 ex Vat | £24,562.80 inc.VAT

    Make an enquiry

    The Tauler SMARTMATIC Laminator is a fully automatic, high speed pneumatic machine that is guaranteed to increase productivity and offer the unparalleled results for a machine of this size.  A top quality finish is achieved by the pneumatic pressure roller system that applies more pressure to the film on the stock, ensuring a firmer, neater finish and less risk of the film being lifted off the sheet.  The roller sciossor system means sheets don’t have to be skewed when exiting the machine, this also means thinner stock can be fed though without the danger of it creasing on exit.

    User friendly with its fast set up times means operators are able to save time and increase production rates.  The automatic feed has a stack height of 480mm.

    Key features

    • Pneumatic pressure roller system.  Extra pressure for finer, more professional finish.
    • Cost effective. Because of the roller system on the SMART 52 you can use standard film more often that having to use digital film, which is a lot more expensive
    • Automatic feed with a stack height of up to 480mm
    • Compact design. Small footprint and easy to move when not in use
    • Operator friendly.  Designed for 1 operator to use with ease.  Set up is quick and simple on the touch screen display
    • High Speed.  The SMART 52 is the quickest machine on the market for its size.  Mechanical speed of up to 20m/min is available.
    • Photocell sensor.  Detects when sheets are missed and stops the machine
    • Oil filled cylinder to maintain a steady and even heat throughout operation.
    • Decurling system
    • Roller scissors cutting system.  Saves the sheet having to skew as it exits the machine

    Technical Spec

    • Maximum format – 520mm x 720mm
    • Minimum format – 200mm x 250mm
    • Paper weight – 130gsm up to 350gsm
    • Speed – up to 20m per minute
    • Pressure – pneumatic




  • Tauler Printlam SMART 52 Laminator

    Tauler Printlam SMART 52 Laminator

    Sale! £17,250.00 £12,375.00 ex Vat | £14,850.00 inc.VAT

    Make an enquiry

    The Tauler Printlam SMART 52 Laminator is a compact, semi automatic machine with pneumatic pressure roller system that ensures the best and most professional finish to all your laminated documents.  Ideal for digital and offset printing.

    The pneumatic pressure roller system allows for standard film to be used more often instead of specially designed, more expensive digital film.  The roller system also reduces the chances of the film lifting off the paper.  The maximum format it will laminate is 520mm x 720mm.  The Tauler SMART 52 laminator has several features that you will not see on comparable rivals.  Highest speed on the market with up to 15m/min.  It is equipped with a sealed, oil filled cylinder to maintain a steady heat, opposed to other brands that have electrical elements that fluctuate while on.

    Key features

    • Pneumatic pressure roller system.  Extra pressure for finer, more professional finish.
    • Cost effective. Because of the roller system on the SMART 52 you can use standard film more often that having to use digital film, which is a lot more expensive
    • Compact design. Small footprint and easy to move when not in use
    • Operator friendly.  Designed for 1 operator to use with ease.  Set up is quick and simple on the touch screen display
    • High Speed.  The SMART 52 is the quickest machine on the market for its size.  Mechanical speed of up to 15m/min is available.
    • Photocell sensor.  Detects when sheets are missed and stops the machine
    • Oil filled cylinder to maintain a steady and even heat throughout operation.
    • Decurling system
    • Roller scissors cutting system.  Saves the sheet having to skew as it exits the machine

    Technical Spec



    • Maximum format – 520mm x 720mm
    • Minimum format – 150mm x 200mm
    • Paper Weight – 130gsm up to 350gsm
    • Speed – Up to 15m per minute
    • Pressure – pneumatic

  • Tauler Printlam SMART B3 Laminator

    Tauler Printlam SMART B3 Laminator

    Sale! £11,500.00 £9,995.00 ex Vat | £11,994.00 inc.VAT

    Binding Store is pleased to bring to you the Tauler Printlam SMART B3 Laminator, the entry level machine in the Tauler range of laminating equipment.  The SMART B3 is an ideal solution for printers looking to upgrade to a more professional machine or enter in to the finishing side of production.  With the built in scissor roller this machine differentiates itself from its direct rivals and makes the exit process smoother and trouble free.

    Key features

    • User friendly. This machine is simple to set up and easy to change formats using the ergonomic touch screen display
    • Great value. Ability to feed full length 3000 metre rolls of film, meaning no more need to purchase several shorter, more expensive rolls
    • Compact design. The SMART B3 has a small footprint and is on casters so it is easy to move and store when not in use
    • Variable roller speed.  This laminator has variable speed and will run from 1m up to 7m per minute
    • Scissor roller. The integral scissor roller means that laminated sheets don’t need to skew to split as they exit the machine.  This means thinner stock can be put through without creasing which seperates this machine from most on the market
    • Single Phase so no need for 3 phase power to be fitted

    Technical Spec

    • Maximum format – 450mm x 690mm
    • Minimum format – 200mm x 200mm
    • Paper Weight – 130gsm up to 350gsm
    • Speed – 1m up to 7m per minute
    • Pressure – Electromagnets

  • Matrix 530 Auto Feeder

    Matrix 530 Auto Feeder

    Sale! £5,999.00 £4,495.00 ex Vat | £5,394.00 inc.VAT

    Now Discontinued

    The Matrix 530 Single Sided Laminator now has the option to have an automatic feeder.  It works on a suction fed system and uses a seperate compressed air unit.  This auto feeder allows staff to leave the Matrix 530 and get on with other print jobs, increasing productivity.

    Features and specs

    • Min. Paper size………..200x300mm
    • Max. Paper size……….500x640mm
    • Max. stack height…….80mm
    • Feeds 5 metres of film per minute

  • Protopic Plus 520

    Protopic Plus 520

    Free!

    Now Discontinued

    The protopic plus is a professional laminator for single-sided lamination up to 520mm width. Very popular with digital printers and print-on-demand situations.

    Perfect for single side laminating with semi automatic feeding and auto cutting (for medium ~ high volume laminating jobs)
    High speed automatic laminator (upto 15m/min)
    Max. laminating width upto 520mm
    Metal hot roller with pneumatic pressure
    Pneumatically controlled feed gate and bursting system
    Adjustable decurling bar to get flat laminates.
    NEW IN 2009 – optional automatic feeder option. Can be a retro-fitted at a later date. (See seperate picture)



    Laminating speed: 15m/min
    Laminating width: 520mm
    Laminating film: OPP, PET, Nylon
    Thickness of paper: 120 ~ 350 gsm
    Power: 220 ~ 240V, 50/60 Hz
    Power consumption: 2300W, 10.5A
    Warm up time 4.5 min
    Heating system: Hot roller internal IR heater
    Operating temp.(max.): 130 C
    Speed control: Jog dial
    Temp. control: Volume
    Pressure adjustment: Pneumatic
    Film core: 77mm dual
    Cooling: Blower
    Dimension 860 x 1585 x 595mm (240kgs)

    Embossing rollers are available for the Protopic Plus-520 in sparkler, linen, fine texture and leather making this laminating machine stand out from others.


  • Peak Neat A4 A3 or A2 Desktop Pouch Laminator

    Peak Neat A4 A3 or A2 Desktop Pouch Laminator

    Free!

    Make an enquiry

    The Peak neat has been designed to be compact, lightweight and easy to operate.
    Each model features 2 heat settings for 75 (150 total) and 125 (250 total) micron pouches, reducing the risk of user error.


  • Matrix 530 Single Sided Laminator

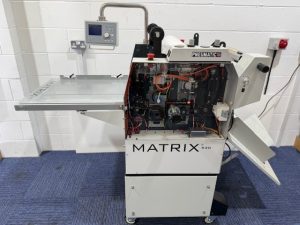

    Matrix 530 Single Sided Laminator

    Sale! £8,495.00 £7,995.00 ex Vat | £9,594.00 inc.VAT

    The Matrix 530 Single Sided Laminator is the best value single sided laminator on the market and is designed for short to medium size runs.

    The ability to bring high performance lamination in-house means you can avoid costly set up charges from outsourcing and ensure perfect results everytime.

    The Matrix 530 laminating machine is an ideal investment if you produce brochures, folders and business cards that need laminating in a gloss or matt finish.

    Go beyond digital printing and experiance the power of profitable laminating.

    •     laminates up to SRA2 (Max film width 440mm)
    •     quick set up time
    •     high speed performance
    •     semi automatic feeder
    •     built in seperator – work comes off finished – ready for guillotine
    •     suitable for traditional offset and digital prints
    •     side lays ensure prints are fed centrally
    •     auto sheet register and overlap system via front guards

    Automated in-house single sided laminating is finally affordable. Beat your competition and offer a faster, cheaper lamination service. Keep control of your print jobs and increase turnaround with the Matrix MX-530 laminator.

    Matrix 530 technical spec:

    • Max roll film size 440mm
    • Laminating Width (mm):  440mm
    • Laminating Speed (m/min):  7-10 metres per minute
    • Laminating Temperature (°C):  From 80 – 130C
    • Power Consumption (W): 1560W
    • Dimensions (W X D X H):
    • 2100 x 840 x 1315mm
    • Weight (KG):
    • 130kg (64kg stand)

    Product overview PDF


  • Matrix 370 Single Sided Laminator

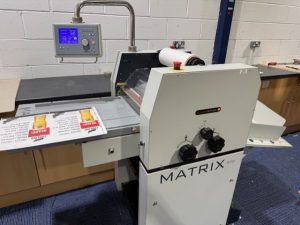

    Matrix 370 Single Sided Laminator

    4 out of 5
    Sale! £7,550.00 £6,595.00 ex Vat | £7,914.00 inc.VAT

    The Matrix 370 is a totally new single sided laminator with a built in separator system designed for up to SRA3 size prints. Maximise performance and profitability by investing in a system that has a quick set up time and high speed performance.  The Matrix-370 is equipped with a semi-automatic feeder and a fully automatic separator – work comes off finished sheets ready for the next process.

    Suitable for traditional offset and digital sheets giving you maximium flexibility.  Side lays ensure prints are fed perfectly. An auto sheet register and overlap system via front guards allows for one operator to perform non stop laminating.

    A superb investment for all printers. With no set-up charges you can keep your lamination work in-house and truly laminate on demand. Sheets can be laminated up to an impressive 10 metres per minute.

    Call Binding store now to arrange a demonstration and for our best price on this product.


  • Matrix Duo and Stand

    Matrix Duo 650 Laminator

    Sale! £2,350.00 £2,115.00 ex Vat | £2,538.00 inc.VAT

    Matrix Duo 650 Laminator and Encapsulator

    Perfect for those businesses that want to print on demand but are currently restricted by the need to outsource their lamination. Ideal for short to medium size runs there is no need to pay costly set up charges, and no delay! Solidly constructed and great for a wide range of applications the Matrix Duo is the best value single sided laminator on the market.

    IDEALLY SUITED FOR
    • menus
    • banners
    • signage
    • posters & prints
    and many more…
    GREAT FOR USE IN
    • commercial printers
    • In-house print rooms
    • copy and digital print shops



    The Matrix Duo-650 allows the flexibility of single side lamination and encapsulation providing an affordable and effective solution. The unique anti-curl bar allows even the thinnest of laminates to be applied without the worry of a curled finish and extension arms allow large rolls of film (up to 1000m) to be used saving changeovertime.
    The Matrix Duo’s are built for continuous use on an everyday basis and have been constructed using parts of the highest quality including heavy duty motors and all metal construction.

    A new addition to the Matrix Duo-650 is an optional perforator to allow for easy seperation of laminated prints.

    Shown with optional stand (Not included)

    Product overview PDF


  • Matrix Duo 460 Laminator

    Matrix Duo 460 Laminator

    Sale! £2,095.00 £1,885.00 ex Vat | £2,262.00 inc.VAT

    The Matrix Duo 460 Laminator is perfect for those businesses that want to print on demand but are currently restricted by the need to outsource their lamination. Ideal for short to medium size runs there is no need to pay costly set up charges, and no delay! Solidly constructed and great for a wide range of applications the Matrix Duo is the best value single sided laminator on the market.

     IDEALLY SUITED FOR
    • menus
    • banners
    • signage
    • posters & prints
    and many more…
    GREAT FOR USE IN

    • commercial printers
    • In-house print rooms
    • copy and digital print shops

    The Matrix Duo allows the flexibility of single side lamination and encapsulation providing an affordable and effective solution. The unique anti-curl bar on both models allows even the thinnest of laminates to be applied without the worry of a curled finish and extension arms allow large rolls of film (up to 1000m) to be used saving changeovertime.
    Matrix Duo’s are built for continuous use on an everyday basis and have been constructed using parts of the highest quality including heavy duty motors and all metal construction.

    A new addition to the Matrix Duo-460 is an optional perforator to allow for easy seperation of laminated prints.

    Shown with optional stand (Not included)

    Product overview PDF
