Paper Drills

Binding Store supply a full range of paper drills, including single head drills with memory table, twin head paper drills, four headed paper drills and multi-head drills for specialist applications.

We sell machinery from reputable brands including Uchida, Morgana, Citaborma, Cyklos, Stago, Hang and Iram. All of our used machinery is serviced and refurbished by our engineers to ensure quality and customer satisfaction.

Should you wish to drill just a few reams of paper or are in a commercial print finishing environment and need to drill palette after palette of work, binding store will have the correct solution for your company.

For further advice and details on our paper drilling equipment contact Binding Store today!
.

Showing all 15 results

  • iram-12-paper-drill

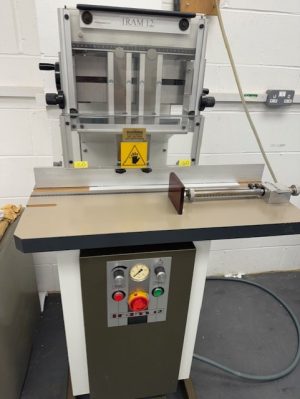

    Iram 12 Paper Drill

    Now Sold

    Iram 12 4 head paper drill in stock.  This machine was taken from a bank in-plant and is in excellent working condition.  Fully guarded for operator safety.  The Iram 12 has 4 drill heads.  The hydraulic table lift speed is also adjustable.  Drill bits from 3mm up to 12mm are available to use on this drill.  Distance between drill heads is adjustable from 60mm width up to 240mm.  Maximum stack height is 75mm.  Adjustable back gauge.(£2250 +VAT)


  • Hang 114-30/4 Automatic Paper Drill

    Hang 114-30/4 Automatic Paper Drill

    Sale! £11,995.00 £3,495.00 ex Vat | £4,194.00 inc.VAT

    NOW SOLD

    The HANG 114-30/4 AUTOMATIC 4 HEAD PAPER DRILL was recently recieved in to us in June 2013.  The machine is in good working condition.  The Hang paper drill was first installed in June 2002.

    This model is the 114-30 which means it is equipped with an additional variable spindle speed setting and drill speed indicator.  This is a great feature for operators when they are drilling difficult stock such as thick paper, plastic or leather.  It has a variable speed of 260rpm up to 1800 rpm.  The machine also ticks over when idle instead of running at full speed, saving energy and noise.  Drilling diameters range from 3mm – 14mm and hole distance on the page can go from as small as 36mm – 260mm.  Both hole distance and drilling depth can be adjusted easily by hand.  Drill heads can be moved by quick adjustment and the table lift speed can be adjusted from 2 strokes per minute up to 22 per minute.  Back guage and side lay are both quick size adjustable with number box to easily recall measurements, as well as having a fine adjuster.  The drilling process is performed by foot pedal.

    The machine runs on 3 phase power and is on wheels making it easy to move and store away when not in use.

    • Maximum stack height – 65mm
    • Insert depth (Edge distance) – 6-85mm
    • Table size – 600 x 480mm
    • Net weight – 400kg
    • Inching mode

  • Uchida VS-200 Paper Drill

    Uchida VS-200 Paper Drill

    Sale! £3,698.00 £2,875.00 ex Vat | £3,450.00 inc.VAT

    This is a twin-spindle heavy duty paper drill for frequent drilling work of all types. The Uchida VS-200 is designed to cope with any requirement a reprographics department is likely to encounter, with a wide choice of sizes and applications catered for, as well as elements with take away any difficulties in operation.

    Features

    • Max stack height    50mm
    • Twin spndle
    • 3-13mm drill bits
    • self centering guides




  • Uchida VS-55 Electric Paper Drill

    Uchida VS-55 Electric Paper Drill

    Sale! £1,254.00 £1,045.00 ex Vat | £1,254.00 inc.VAT

    The Uchida VS-55 is a heavy-duty paper drill to handle regular drilling work, while retaining simplicity of use and with no loss of versatility. It is the machine to use where quantities of documents need to be drilled for correct archiving. The choice of holes drilled rises to 13mm in diameter while a 376mm maximum paper length will cover the paper formats that are most common in office use.

    Features

    • Single spindle
    • 3-9mm drill bits
    • self centering guides
    • locking paper clamp

  • Stago PB5010 Paper drill

    Stago PB5010 Paper drill

    Free!

    Make an enquiry

    No. of drilling spindles 2-5 , Drilling spindle distance 40-250mm , Drilling diameter 2-10mm


  • Stago PB2015-Paper drill

    Stago PB2015-Paper drill

    Free!

    Make an enquiry

    No. of drilling spindles 2 , Drilling spindle distance 80mm or 60-120 mm , Drilling diameter 2-15mm


  • Morgana Nagel Citoborma 190 Drill

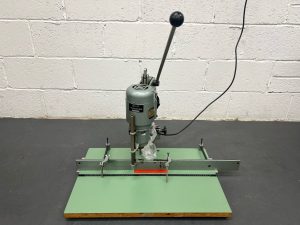

    Morgana Nagel Citoborma 190 Drill

    £2,330.00 ex Vat | £2,796.00 inc.VAT

    The Citoborma 190 single head drill is well known to be industry standard and remarkably user friendly.  It has 6 pre-programmed different hole patterns set up within a second.  It is a table top model with a quick release sliding table.

    Max paper width   470mm
    Max drill depth     60mm
    Drill diameter      2 to 20mm


  • iram-16-paper-drill-1

    Iram 16 Paper drill

    Sale! £3,995.00 £2,950.00 ex Vat | £3,540.00 inc.VAT

    Now Sold

    Binding Store are pleased to offer For Sale this great condition Iram-16 4 head paper drill. This model has the optional air cooling fitted that is operational when fitted to a compressor (can be supplied separately)   The Iram 16 has a drilling thickness of 65mm.  A hydraulic lifting table that is adjustable with height and speed, lifts the paper to the drill bits when operated by the foot pedal.  It can be fitted with standard or teflon drill bits from 3mm up to 12mm in diameter.  The minimum distance between drill heads is 45mm while the maximum distance is 540mm.  The Iram 16 has a drilling throat of up to 260mm.  Each drill head is indivdually adjustable for fine tuning.


  • pb04-1

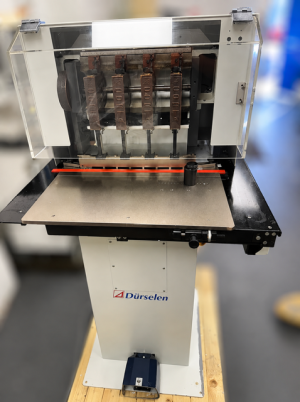

    Durselen PB04-N Paper Drill

    Sale! £29,995.00 £2,750.00 ex Vat | £3,300.00 inc.VAT

    Durselen PB04-N Paper Drill

    Binding Store now have in stock an excellent condition 2006 Durselen PB04N Paper Drill. It comes with a fixed 7 hole Jepperson drill head and can be seen running in our Welwyn Garden City showroom. Individual drill heads can be fitted quickly and easily.


  • Stago HS50 Round Corner Cutter

    Stago HS50 Round Corner Cutter

    Free!

    Make an enquiry

    Easy interchangable Radii R3.5-R20
    Hollow drill punch 3-12mm
    Thumb index punch
    Guide price £965+VAT
    Call us for current offer price

    STAGO-Round Cornering Machines are useful for many different materials like paper, cardboard, leather, plastic, etc. With different tools from our STAGO equipment it is possible to carry out different press cuts precisely and neat up to the size of DIN A3. The side lays are stepless adjustable and the tools can be easily and quickly exchanged.

    Punching capacity max. 25mm (is equivalent to 250 sheets of 80g paper)
    Punching radii  R3,5 / R7 / R10 / R12 / R15 / R20
    Hollow punches diameter  3-12mm
    Punch distances 20-80mm
    No. of punches 1-8
    Thumb index punches  yes
    Paper size  bis DIN A3
    Machine Dimensions (H/W/D) 830 / 650 / 450mm
    Weight 19kg
    Certified by  CE
    ALL TOOLS SOLD SEPERATLEY


  • Stago PB1015- Paper drill

    Stago PB1015- Paper drill

    Free!

    Make an enquiry

    tago PB1015- Paper drill
    Single-spindle paper drilling machine
    Bench top hand lever
    automatic disposal of paper trimmings
    Infinate variable drilling speeds
    Guide price £1995+VAT(fixed)£2495+VAT(sliding)
    Call us for current offer price

    No. of drilling spindles  1
    Drilling spindle distance  –
    Drilling diameter  2-15mm
    Drilling speeds  1200 / 2400 U/min
    Drill types  High-performance-steel, hard chrome, titanium / glide coating / detontation-coated
    Drilling depth max.  60mm
    Table size, fix table  450 x 360mm / 650 x 450mm
    Table size, sliding table  450 x 360mm / 650 x 450mm
    Throat depth 85mm
    Displacement up to  400mm
    Paper size  up to DIN A3
    Materials Paper / plastic / leather
    Power supply  230V / 50Hz (alternative 115V / 60Hz)
    Drive output  0,18kW / 0,25kW
    Machine Dimensions (H/W/D) 580 / 650 / 450mm (fix table)
    700 / 650 / 450mm (sliding table)

    Weight 32kg fix table / 42kg sliding table
    Certified by  GS / CE


  • Stago PB 1010- Paper drill

    Stago PB 1010- Paper drill

    Free!

    Make an enquiry

    Stago PB1010- Paper drill
    Single-spindle paper drilling machine
    Bench top hand lever
    automatic disposal of paper trimmings
    Drilling Ø 2–10 mm with max 60mm drill depth
    Guide price £1895+VAT
    Call us for current offer price

    No. of drilling spindles  1
    Drilling spindle distance  –
    Drilling diameter  2-10mm
    Drilling speeds  2400 U/min
    Drill types  High-performance-steel, hard chrome, titanium / glide coating / detontation-coated
    Drilling depth max.  60mm
    Table size, fix table  450 x 360mm / 650 x 450mm
    Table size, sliding table  450 x 360mm / 650 x 450mm
    Throat depth 85mm
    Displacement up to  400mm
    Paper size  up to DIN A3
    Materials Paper / plastic / leather
    Power supply  230V / 50Hz (alternative 115V / 60Hz)
    Drive output  0,18kW
    Machine Dimensions (H/W/D) 580 / 650 / 450mm (fix table)
    700 / 650 / 450mm (sliding table)

    Weight 32kg fix table / 42kg sliding table
    Certified by  GS / CE
    Options Sliding table, programme shaft, automatic spindle stroke, foot-switch operation


  • MC6 ID Slot and Round Corner Machine

    MC6 ID Slot and Round Corner Machine

    Sale! £115.00 £99.00 ex Vat | £118.80 inc.VAT
    •     Punches slots in I.D cards (16mm x 3mm)
    •     round corners with 6,9,12mm radius
    •     Guide price £115+VAT

    Punch slots in ID cards and also round corners paper, card and laminated items

    • 6mm round cornering radius
    • Round cornering 1.5mm maximum paper thickness
    • Slot punching for 86 to 120mm size cards
    • 3mm x 16mm slot size (ideal for ID cards)
    • Scale and side stop for easy centring of slot

  • Cyklos Euro Punch 35

    Cyklos Euro Punch 35

    Sale! £160.00 £139.99 ex Vat | £167.99 inc.VAT
    •     Punches a standard euro slot
    •     For use on card or plastic
    •     Easy to set up and operate



    RRP £140 – currently on offer!!

    Punches a standard euro slot .For use on card or plastic .Easy to set up and operate

    MAX. PUNCHING THICKNESS – 1,5 mm
    DIMENSION – L=300 mm, w=250 mm, h=92 mm
    PACKING SIZE – L310 mm, w=260 mm, h=100 mm
    WEIGHT – net 3 kg, gross 3,5 kg
    ​Please note Cyklos equipment may not always be available for next day delivery


  • Stago PB1006- Paper drill

    Stago PB1006- Paper drill

    £1,495.00 ex Vat | £1,794.00 inc.VAT

    Stago 1006 Paper drill
    Single spindle drill
    Bench top hand lever operation
    Drilling Ø 2–8 mm
    sliding table with programme shaft

    No. of drilling spindles  1
    Drilling spindle distance  –
    Drilling diameter  2-8mm
    Drilling speeds  2400 U/min
    Drill types  High-performance-steel, hard chrome, titanium / glide coating / detontation-coated
    Drilling depth max.  40mm
    Table size, fix table  450 x 360mm / 650 x 450mm
    Table size, sliding table  450 x 360mm / 650 x 450mm
    Throat depth 48mm
    Displacement up to  260mm
    Paper size  up to DIN A3
    Materials Paper / plastic / leather
    Power supply  230V / 50Hz (alternative 115V / 60Hz)
    Drive output  0,12kW
    Machine Dimensions (H/W/D) 475 (510) / 450 / 360mm

    Weight 15kg fix table / 21kg sliding table
    Certified by  GS / CE
    Options Sliding table, programme shaft
